What’s MSO/UPO2000 series digital phosphoroscilloscope?

The MSO/UPO2000 series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators, and many functional features.

It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise, and low wave signals.

Key Parameter

  • 100MHz to 200MHz BANDWIDTH
  • 2/4 ANALOG CHANNELS
  • 2GSa/s REAL-TIME SAMPLE RATE
  • 1,000,000wfms/s WAVEFORMCAPTURERATE
  • 56 Mpts MAX. MEMORY DEPTH
  • 16 DIGITAL CHANNEL
Get A Quote

MSO/UPO2000 Digital Oscilloscope Datasheet-EN

Lorem ipsum dolor sit amet consectetur. Ornare amet id vitae et lacus cursus velit tortor. Fermentum etiam morbi ultricies interdum. Cras tincidunt vitae ac purus augue est luctus.

Download Datasheet

AWG Function Arbitrary Waveform Generator

The built-in dual-channel function arbitrary waveform generator can output sine wave, square wave, ramp wave, pulse wave, arbitrary wave, noise and DC. The maximum frequency output of sine wave is 50MHz.

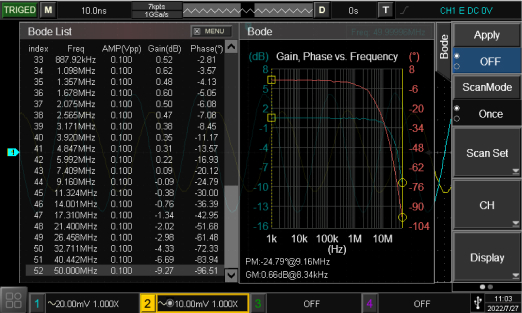

Bode plot

Can be used for loop analysis. It is a critical measurement often used to characterize the frequency response (gain, phase, and frequency) of today's various electronic designs, including passive filters, amplifier circuits, and negative feedback networks for switch-mode power supplies.


Full memory hardware decoding

The decoding speed is greatly improved. The full-memory hardware decoding under the deep storage of 56Mpts, the decoding time is increased from more than ten seconds to milliseconds, which realizes real-time decoding and greatly improves the user's problem diagnosis efficiency. The recorded waveform also supports full-memory hardware real-time decoding.
